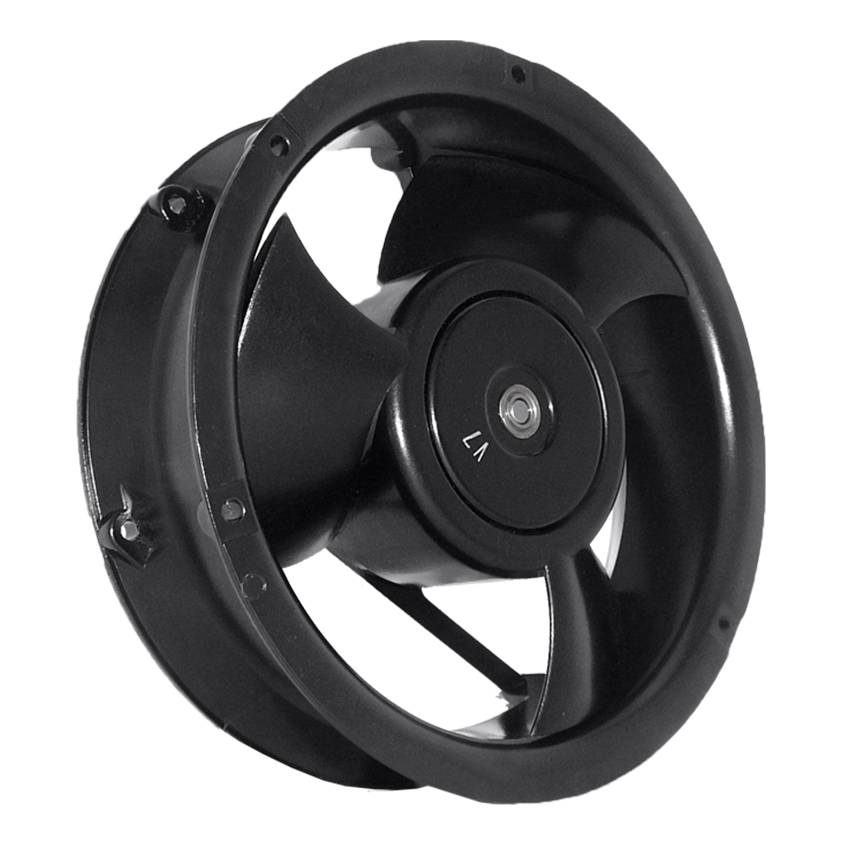

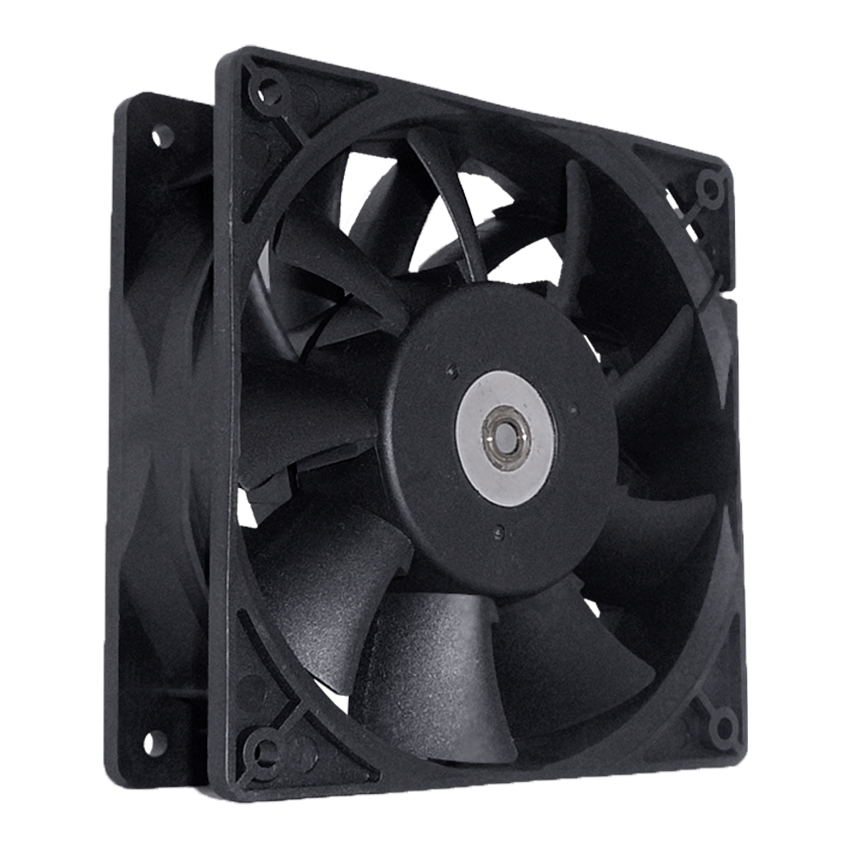

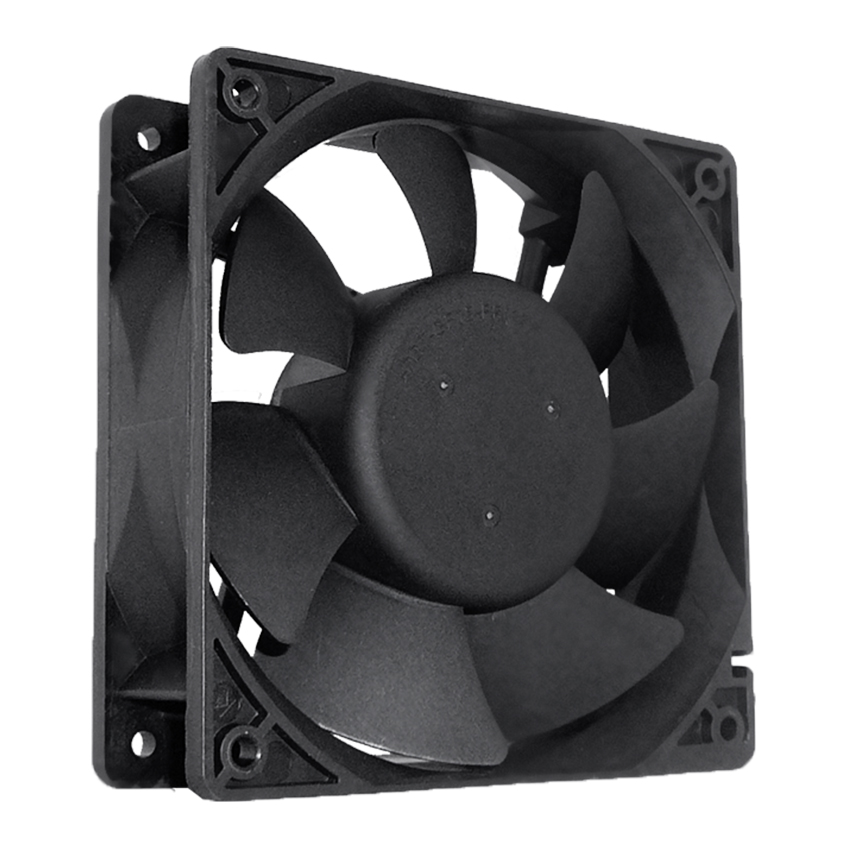

ETRI Axial Fans EC

Applications:

Axial fans make it possible to combine high volume output with compactness.
The relatively high pressures supplied by our fans also make it possible to overcome the losses of resistance encountered in the use of dust filters or in very compact equipment.
They are used to cool printed circuits, semi-conductors, motors...



Electronical, aerodynamic and industrial data:

The following information can be found in the data tables:
- Nominal voltages and frequency
- Rated speed which is an approximate value of the fan speed operating at free air
- Power consumption and line current for maximum output
- Maximum static pressure corresponding to the pressure at no flow condition
- Maximum air delivery corresponding to airflow at no static pressure value
- Total noise level in decibels from the equilibrium curve A measured 1 meter from the air inlet, the fan operating in free air.

  • Axial fans with impeller in plastic UL 94 V-0
  • Maximum airflow: 142,7l/s
  • Maximum pressure: 32mmH2O
  • Dimensions from 40 x 40 x 10mm to Ø 172 x 50mm
  • Motors DC in 5V, 12V, 24V and 48V
  • Housing in plastic UL 94 V-0, zamak or aluminium
  • Mark CE, UL

Options: speed sensor, alarm, different IP levels, connection type,…
